Lead X-Ray Shielding Automatic Hermetic Door Automatic Sliding Door

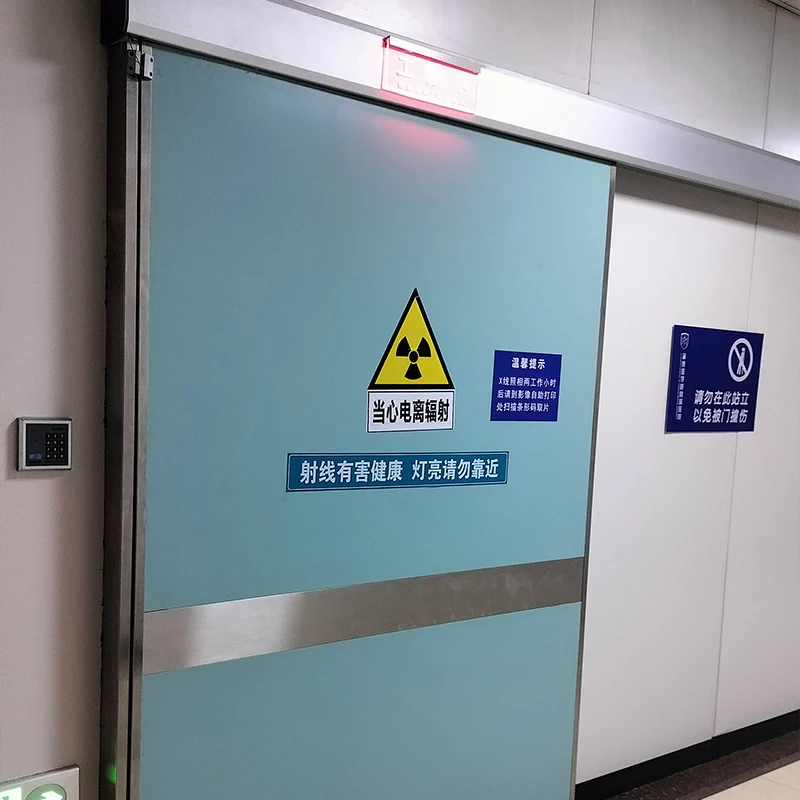

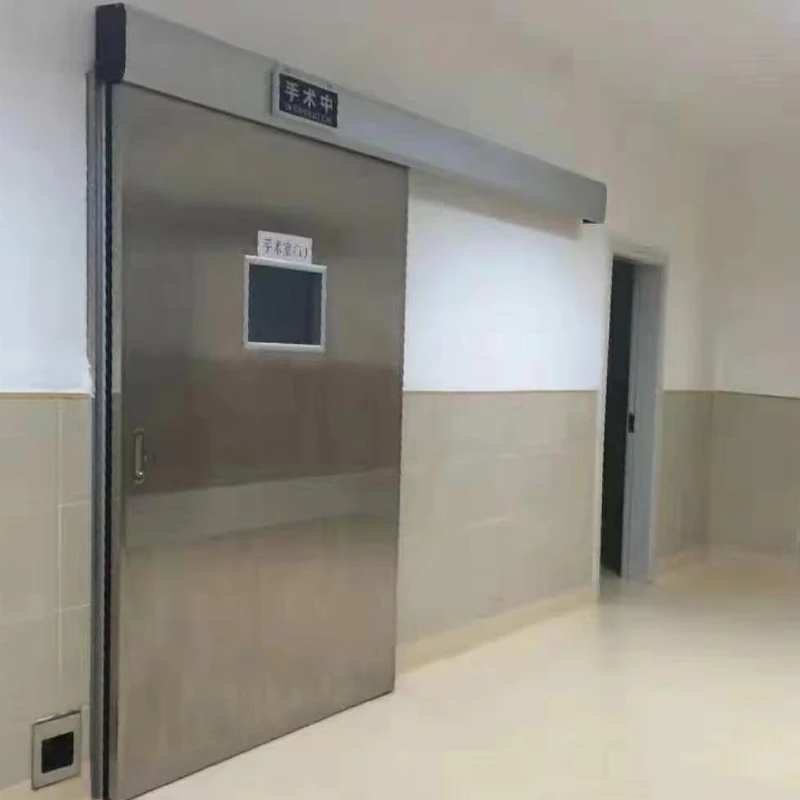

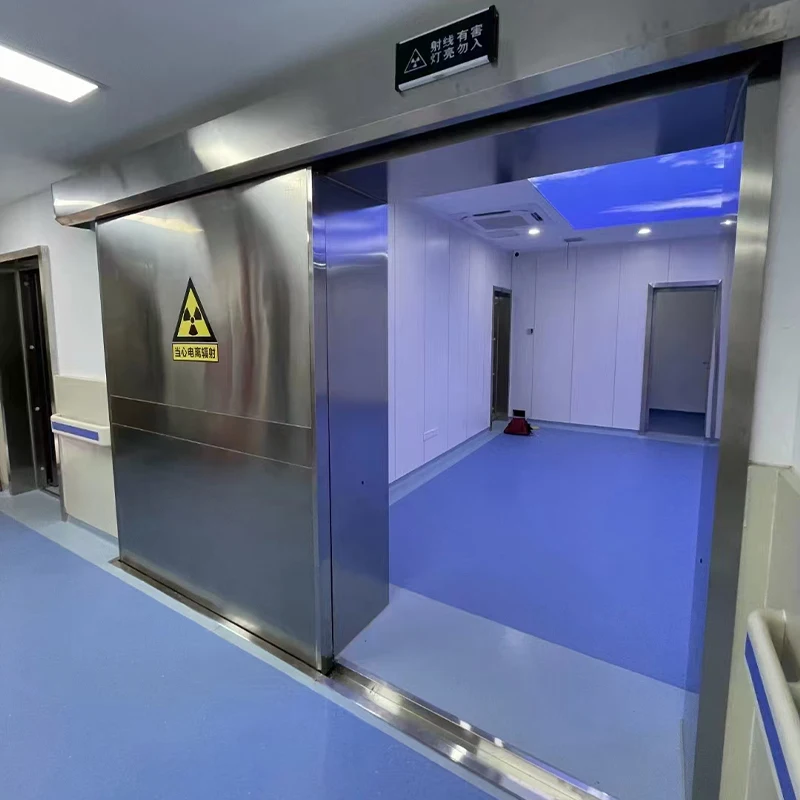

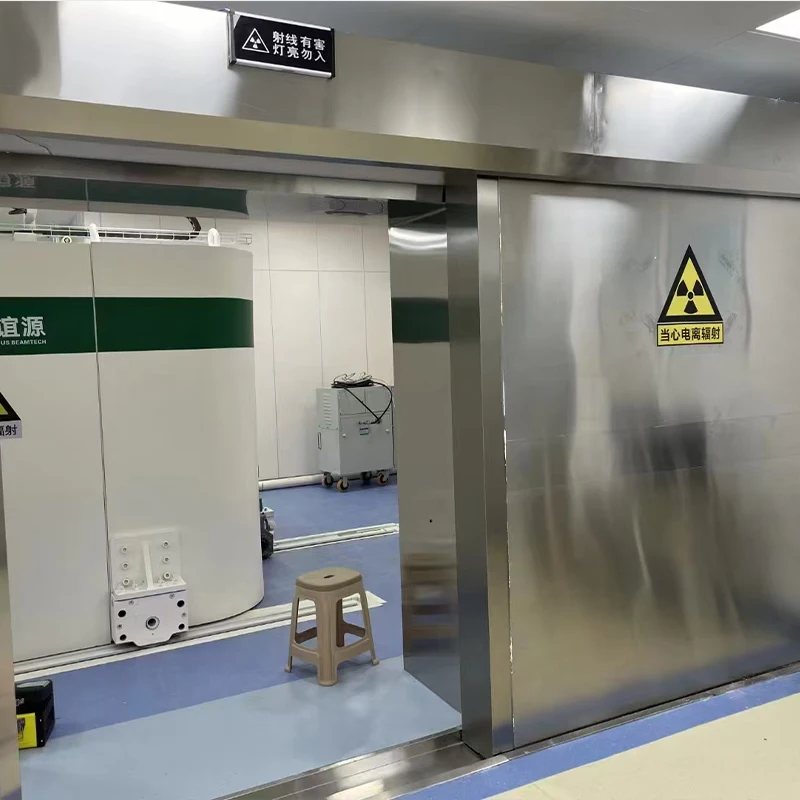

The Lead X-Ray Shielding Automatic Hermetic Door, also known as an Automatic Sliding Door, is a highly specialized and essential component in medical and industrial facilities where X-ray radiation is present. Constructed with high-quality lead materials, it offers excellent shielding properties, effectively blocking harmful X-ray radiation to protect both patients and medical staff. Its automatic sliding mechanism ensures smooth and convenient operation, enabling quick access while maintaining a hermetic seal. This not only helps in radiation containment but also improves workflow efficiency. With advanced sensor technology, it opens and closes precisely, making it a reliable choice for radiation protection.
- Overview
- Related Products
Product Paramenters
Liaocheng Fuxunlai Trading Co., Ltd. |
||
Door size |

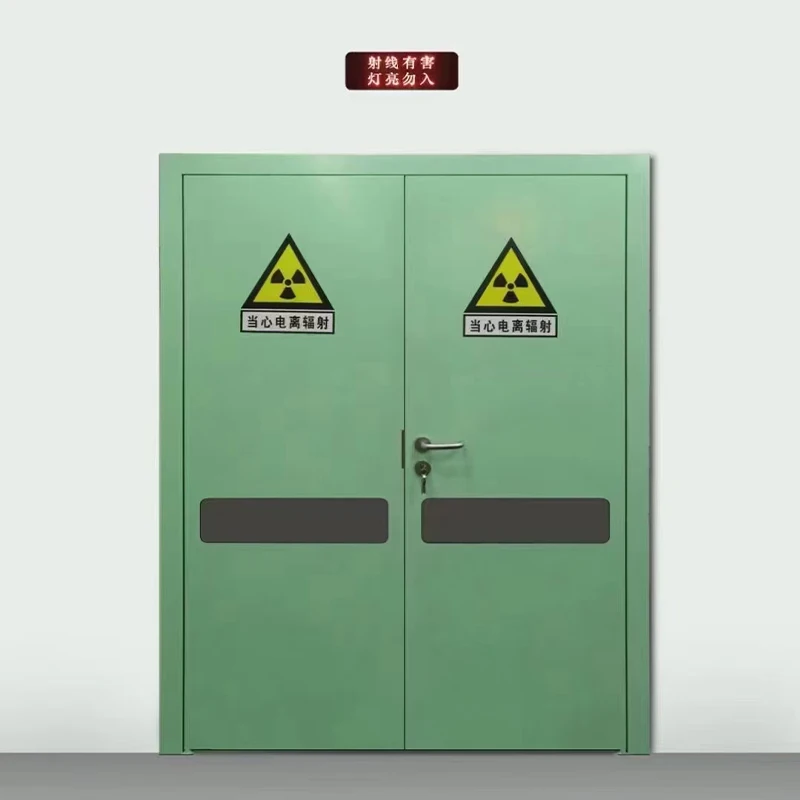

swing door: single door width: 700mm-1000mm, picture door width: 1200mm-1400mm, double door width: 1400mm-1800mm, door height: 1900mm-3000mm sliding door:
single door width: 1000mm-2200mm, double door width: 1500mm-3000mm, door height: 1900mm-3100mm |
|
Material |
Lead sheet (PB), stainless steel, steel structure, MDF board, PU foam, etc. |
|
Function |
X-Ray protection. |
|
Lead sheet thickness |
2mm, 3mm, 4mm, 6mm. |
|
Door frame |
1.2mm thickness stainless steel or color painted steel. |
|
Door panel construction |
1) Door skin: 0.8mm cold rolled steel/0.8mm stainless steel/1.2mm aluminum plate/HPL board 2) MDF/plywood board: 5mm thickness high quality MDF 3) Steel structure: 1.8mm thickness, 30mmX30mm galvanized steel tube structure + 30mm PU foam/fire rated cotton 4) Lead sheet: 1mm--3mm lead sheet for each side (2mm to 6mm lead sheet total) |
|
Door skin material |
color painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc. |
|
Door skin color |
original SUS color, original aluminum color, light blue, white, grey, beige, etc. |
|
Automatic door system |
opening door by hand sensor switch, feet sensor switch or press switch |
|
Our Advantages
Excellent Radiation Protection Performance
As a high-density material, lead can effectively shield high-energy radiation such as X-rays and gamma rays. The core layer of the lead door is usually made of lead materials of different thicknesses to ensure that the protection effect can meet international radiation safety standards.
The lead door uses a strong steel frame and lead alloy material, which has strong corrosion resistance and durability, and can withstand wear and tear during long-term use.
The surface of lead doors is usually made of easy-to-clean materials that are resistant to contamination and corrosion in radiation environments. Regular maintenance of the seal and lock of the door body is very simple and helps to extend its service life.
Company Profile
Liaocheng Fuxunlai Trading Co.,Ltd. was established in 2010 and is located in Liaocheng city, shandong Province. The factory covers an area of 7000 square meters and has completed research and development personnel and quality inspection personnel.Our company specializes in producing Aluminum Alloy Windows, lead doors, operating room doors, operating room beds, shadowless lamps, purification board, hospital doors, floor tiles, cable bridge , With over 15 years of production experience, the company adheres to the principle of quality first and reputation first, and a sincere survival philosophy, We have rich experience, which means we can understand your various needs today and tomorrow, and provide timely and comprehensive services from structural design material selection,professional installation, and after-sales service.
Product Packaging
Customer Photos
Certifications
FAQ
Q. What is the radiation protection effect of lead doors?A: The radiation protection effect of lead doors depends on the thickness of the lead layer and the design of the door. Common lead doors can provide a shielding effect from 2mm to 6mm lead equivalent, which can effectively prevent radiation leakage and protect staff and patients from radiation hazards. The specific shielding effect needs to be customized according to the radiation intensity of the use environment.
Q. How long does lead door need to be maintained?A: Lead doors usually need regular inspection, especially to check the tightness of the door frame and lock function. It is common practice to have a full inspection every year. If the use environment has strong radiation or the door body loss is large, it is recommended to adjust the inspection frequency according to the actual situation.
Q. Can lead doors resist corrosion?A: Lead doors are usually made of anti-corrosion materials or surface coatings (such as powder coatings) to enhance their durability and corrosion resistance. Although the lead material itself has a high corrosion resistance, the surface treatment can further enhance its durability in wet or other harsh environments.
Q. Do lead doors need to be professionally installed?A: Yes, the installation of lead doors usually needs to be done by professionals. Because the installation of lead doors involves technical details such as the docking of the door frame, the inspection of the sealing performance and the placement of lead materials, only professionals can ensure that the door body is securely installed and the radiation protection effect reaches the standard.
Q. How are the locks and safety of lead doors?A: Lead doors are equipped with high-security locks to prevent unauthorized persons from entering high-radiation areas. The lock system is usually very strong, and different types of locks can be selected according to the requirements, such as mechanical locks, electronic locks, etc.
